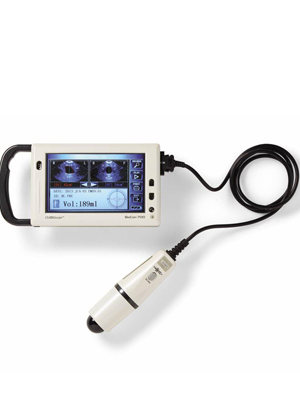

Mcube CubeScan BioCon 700 Bladder Scanner

Mcube CubeScan BioCon 700 Bladder Scanner

$16,452.98

inc GST

Code: BIOCON-700

Supplier Part: BIOCON-700

Unit: each

Buy In Item

Mcube CubeScan BioCon 700 Bladder Scanner

  • Non-Invasive Measurement
  • Real-Time Pre-Scan
  • Review of scanned bladder images
  • Save and Retrieve scanned information
  • PC-transfer for scanned information
  • Built-in PrinterScreens urological problems
  • Evaluates urinary retention
  • Indicates bladder over-distension
  • Measures PVR (post-void residual)
  • Minimizes unnecessary catheter usage, thereby reducing incidence of urinary tract infection
  • Manage post-operative urinary retention
  • Preserves patient dignity
  • Reduces patients pain and discomfort
  • Improves quality of life
  • Reduces overall cost of care
  • Minimises Incontinence episodes
  • Improves quality of patient care
  • Saves time (5 second scan)
  • Saves total expenses (cost of care) through increased efficiencies
  • Display – 7″ TFT-LCD (WVGA), 16.7M colors (Color Touch Screen)
  • Volume Range – 0~999ml, Accuracy: 15%,15ml(0-999ml)*1)
  • Printer – Built-in (50mm width) thermal printer
  • Ultrasound Probe – 3D Sector Scan, 2.6MHz ultrasound frequency, B-Mode Scan, Scan Angle: 120
  • Power – 3A, 9V DC Adapter (Adapter Input: AC 100 ~ 240V 50/60Hz), 7.4V battery pack (Li-ion)
  • Dimension:
  • 66mm(L) x 202mm(W) x 130mm(H) (0.92Kg) Ultrasound Probe Parameter Maximum (ISPTA): 1mW/cm2, Maximum (ISPPA): 10W/cm2, Maximum MI(Mechanical Index): 0.9max, Transducer diameter: 10mm, Transducer Resonant Frequency: 2.6MHz.
