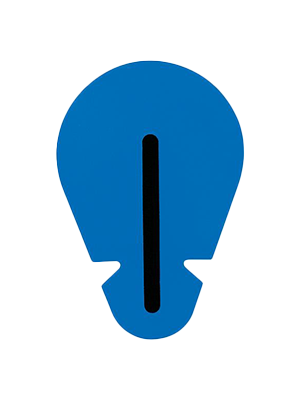

Ambu BlueSensor SU are single-use ECG electrodes designed for resting ECG applications. The SU-00-C/100 configuration features a tab connector, conductive wet gel and an Ag/AgCl sensor to support consistent signal acquisition and skin-to-electrode contact. An offset connector helps reduce the effect of lead-wire movement and allows connection or disconnection without applying pressure directly over the sensor area. Each electrode measures 49mm x 33mm, with 100 electrodes supplied per pack.
Key Features and Benefits:
- Resting ECG Application: Designed for diagnostic resting ECG procedures.
- Conductive Wet Gel: Helps lower skin impedance and supports contact between the skin and electrode.
- Ag/AgCl Sensor: Silver/silver chloride sensor supports stable ECG signal quality.
- Tab Connector: SU-00-C/100 uses Ambu's tab-style connector for connection to compatible ECG equipment.
- Offset Connector: Helps minimise the effect of external forces, including lead-wire movement, on signal quality.
- Fluid-Resistant Backing: Occlusive backing material is designed to resist fluids.
- Radiolucent: The SU-00-C tab configuration is radiolucent.
- MR Conditional: The SU-00-C configuration is MR Conditional under the conditions specified by Ambu.
- Single Use: Designed as a single-use ECG electrode.
- 100 Electrode Pack: Supplied as 10 electrodes per liner and 100 electrodes per pouch.
Specifications:
- Brand: Ambu
- Product: Ambu BlueSensor SU ECG Electrodes Tab 49mm x 33mm (AM-SU-00-C/100)
- Product Type: ECG Electrode
- Range: BlueSensor SU
- Application: Resting ECG
- Electrode Size: 49mm x 33mm
- Skin Contact Size: 34mm x 33mm
- Shape: Teardrop
- Connector Type: Tab
- Sensor Material: Silver/Silver Chloride (Ag/AgCl)
- Gel Type: Wet Gel
- Backing Material: Polyethylene Foam
- Skin Adhesive: Acrylate
- Radiolucent: Yes
- MRI Safety: MR Conditional
- Single Use: Yes
- Sterile: No
- Shelf Life: 24 Months
- Units per Liner: 10
- Supplier Part: AM-SU-00-C/100
- Manufacturer Reference: SU-00-C/100
- Previous Supplier Part: AM-SU-00-C/BX100
- Quantity: 100 Electrodes
- Bulk Unit: 12 Packs per Box
- Unit of Measure: Pack of 100
- Image is a sample of product.
Warning: Always read the label and follow directions for use.
