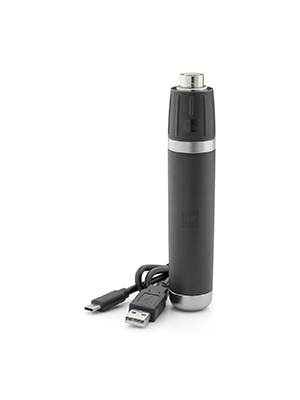

The Welch Allyn Lithium-Ion Plus USB handle is intended for use as a power source for all Welch Allyn standard 3.5V instrument heads. The USB port provides the fastest charging of the handle and is best for travel or when a quick recharge is needed. The desk charger charges more slowly, making it optimal for maintaining charge between examinations throughout the day.
Features & Benefits:
The Lithium-Ion plus handle contains a section for instrument head attachment on the top of the device, a rheostat section, battery section, charge indicator, USB-C port and light intensity control ring. When an instrument head is connected to the handle, the device may be turned on by rotating the light intensity control ring clockwise above 6.
Accessories:
- 719-DSK Universal Desk Charger
- 719-CAB USB-C charging cable (50cm) replacement
- 719-USB Power supply, 5V, 1.4A, USB-A US
Compatible Devices:
- 118-2 Welch Allyn PanOptic Basic Ophthalmoscope
- 118-3 Welch Allyn PanOptic Plus Opthalmoscope
- 250-2 Welch Allyn LED Otoscope
- 238-3 Wech Allyn MacroView Basic Otoscope
- 238-3 Welch Allyn MacroView Plus Otoscope
Warranty:
The USB handle is guaranteed by Welch Allyn against all manufacturing defects and offers repairments of replacement for possible defects, free of charge. Welch Allyn warrants that the battery section will perform to original specifications during the two years from the date of manufacture. A defective battery will be replaced if it fails within two years of the date of manufacture.
Specifications:
- Brand: Welch Allyn®
- Product: Welch Allyn® Lithium-Ion Plus USB-S Handle with USB-C C/Cable (719-3)
- Dimensions: 136.5mm ± 10mm
- Weight: 131g ± 5g
- Equipment classification: Internally powered
- Operating mode: non-Continuous operation
- Transport and Storage Environment: -20oC to 55oC, 10% to 95% R.H. non-condensing, 69.7kPa to 106kPa altitude
- Operating Environment: 10oC to 35oC, 15% to 90% R.H. non-condensing, 69.7kPa to 106kPa altitude
- Standards: IEC 60601-1, IEC 60601-1-2, ISO 10993-1
- Unit of Measure: Each
- Image is a sample of product
