LOGGER REPLACEMENT TREX-8

10011776

Request for More Information

$117.82 inc GST

Supplier Part LOGEX_NP

Unit EA

Please Sign in / Register for more

Description:

LOGGER REPLACEMENT TREX-8

UOM: Each

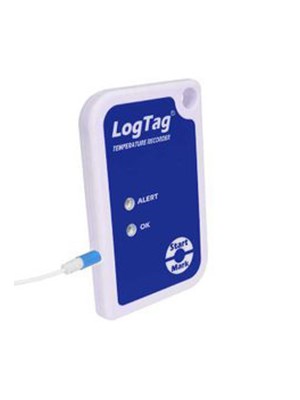

Image is the sample of the product.

This is the perfect LogTag when you need to measure temperatures inside coolers, underwater or in small spaces. Great for monitoring internal temperatures of food.

Push Button Start

Configure the Tag to use Push Button Start and there is no rush about getting the Tag from the Reader to the refrigerator. Logging will not begin until the Start button is pushed.

Range of Probes

Choose the probe that's right for your application.

Visual Alerts

If the Tag logs temperatures outside the safe range you have set, the Alert LED will flash red, giving you a handy visual notification that there has been a problem.

Why use an external probe?

LogTags are tough and versatile, bu there are some places they just can’t go.

In particular, when logging the temperature of liquids, you will need a probe. An example might be measuring the cooling rate of a large batch of custard.

Probes are also useful to monitor temperatures inside coolers and other containers without removing the lid.

Another use might be measuring soil temperatures. The probe is driven into the soil while the LogTag remains clean and protected above ground.

Specifications

Product Model	TREX-8
External Sensor Measurement Range	-40°C to +99°C (-40°F to +210°F)
Operating Temperature Range	-40°C to +85°C (-40°F to +185°F).
Storage Temperature Range	-10°C to +55°C (14°F to +131°F).
Rated Temperature Reading Accuracy	Better than ±0.5°C for -10°C to +40°C. Better than ±0.7°C for -10°C to -30°C and +40°C to +60°C. Better than ±0.8°C for -30°C to -40°C and +60°C to +80°C. Better than ±1.0°C for +80°C to +99°C. Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below. Accuracy figures can be improved by recalibration.
Rated Temperature Reading Resolution	Less than 0.1°C for -40°C to +40°C. Less than 0.2°C for +40°C to +80°C. Less than 0.6°C for +80°C to +99°C. Please see the Rated Native Resolution chart below. LogTag Analyzer^® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag^®.
Sensor Reaction Time	Typically less than 2 minutes (T90) in moving air (1m/s) for ST100T, ST100H and ST100S types.
Recording Capacity	8031 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging.
Sampling Interval	Configurable from 30 seconds to several hours.
Logging Start Options	Push button start or specific date & time. Optional start delay of up to 18 hours.
Recording Indication	Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator.
Download Time	Typically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used.
Environmental	IP61.
Power Source	3V Li-Mg Battery.
Battery Life	2 – 3 years of normal use (based on 15 minute logging, download data monthly).
Real Time Clock	Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
Standard Remote Sensor Cable Length	Standard: 1.5m (4’11″). Extended: 3m (9’10″) (Recommended maximum).
Remote Sensor Cable Type	PTFE (FDA food contact rated), coaxial.
Size	86mm(H) x 54.5mm(W) x 8.6mm(T).
Weight	36g (without External Probe).
Case Material	Polycarbonate.
