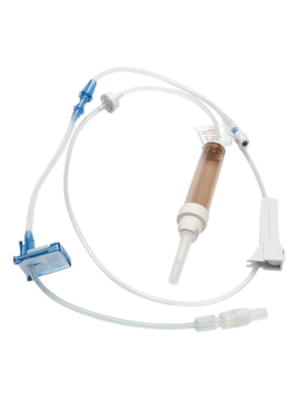

The BD Gravity Infusion Set SmartSite™ is a sterile, single-use intravenous administration set designed for gravity delivery of compatible IV fluids. Featuring a SmartSite™ needle-free valve and 20 drops/mL drip chamber, the set supports safe and efficient infusion therapy in hospitals, day surgeries and other healthcare environments.
Key Features and Benefits:
- Gravity Administration Set: Designed for the gravity infusion of compatible intravenous fluids.
- SmartSite™ Needle-Free Valve: Supports needle-free access and helps reduce the risk of needlestick injuries.
- 20 Drops/mL Drip Chamber: Allows accurate visual monitoring of infusion rates.
- 200 Micron Filter: Filters particulate matter during fluid administration.
- Hydrophobic Air Inlet Filter: Helps maintain venting while reducing contamination risk.
- Rotating Male Luer Connector: Provides a secure connection to compatible IV access devices.
- Roller Clamp: Enables controlled regulation of infusion flow.
- Latex and DEHP Free: Manufactured without natural rubber latex or DEHP.
- Sterile Single-Use Device: Supports infection prevention and patient safety.
Specifications:
- Brand: BD
- Product: BD Gravity Infusion Set SmartSite (901-020E)
- Product Type: Gravity IV Administration Set
- Application: Administration of compatible intravenous fluids by gravity infusion
- Set Length: 245cm
- Tubing Bore: 3mm
- Priming Volume: 23mL
- Drip Rate: 20 drops/mL
- Drip Chamber Filter: 200 micron
- Air Vent: Hydrophobic air inlet filter with cap
- Needle-Free Access: SmartSite™ Valve Y-Port
- Flow Control: Roller Clamp
- Connector: Rotating Male Luer
- Latex Free: Yes
- DEHP Free: Yes
- Sterility: Sterile
- Image is a sample of product.
Warning: Always read the label and follow directions for use.
